Features and Construction:


Table can be swiveled to each 45 right and left

A universal dividing head can be transmitted through the screw.

Available to use a slotting attachment.



SPECIFICATIONS

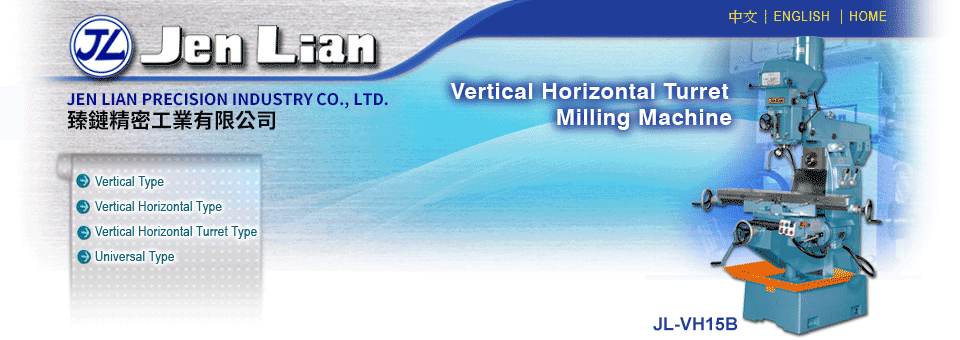

JL-VH15A
JL-VH15B
JL-VH15C
Table
Working surface of table
300 x 1200 mm
Longitudinal travel
700 mm
Transver travel
300 mm
Vertical travel
330 mm
Range of longitudinal feed speed (mm/min)
60c/s (21~246)¡@50c/s (17~203) 6 Steps
Range of longitudinal rapid speed (mm/min)
60c/s (2056)¡@50c/s (1713)
Table will swivel (R & L)
45
Vertical Main Spindle

 Spindle speeds
60c/s 73~3925
50c/s 60-3620
10 Steps
70~3800 rpm
( Mechanical Variable speed )
0~4000 rpm
( INVERTER )
Taper of spindle bore
N.T. 40#
Quill travel / Quill Dia.
150 / ¡í105
Head will swivel (R & L)
90
Over arm will swivel
455 mm
Traverse of over arm
360
Spindle nose to table surface
70~420 mm
Spindle center to column surface
155~475 mm
Horizontal Main Spindle
 Range of spindle speeds (6 steps) rpm
60c/s (108~1470)¡@50c/s (90~1225) 6 Steps
Taper of spindle bore
N.T. 40#
Spindle center to table
0mm~330 mm
Spindle center to over arm bottom
135 mm
Motor
Vertical milling
5HP
Horizontal milling
4HP
Table longitudinal feed
1 1/2HP
Coolant pump
1/8 HP
Net weight (approx)
1250 kgs
Gross weight
1380 kgs
Packing measurement (L x W x H)
1575 x 1575 x 2007 mm

Specifications are subject to change without prior notice.





¡³ PECIFICATIONS EQUIPMENT

¡³ OPTIONAL EQUIPMENT
¡E Coolant equipment
¡E Cutter arbor
¡E Cutter sleeve
¡E Draw bar
¡E Tool box with adjusting tools
¡E Coolant tray
¡E CE electric
¡E Table splash guard
¡E Digital readout system (FAGOR)
¡E Milling cutter
¡E Vertical spindle controlled by inverter
¡E Air draw bar
¡E Y-axis automatic feed with 9-step gear-drive
¡E Z-axis gear-drive feed
¡E Horizontal milling arbor
