Features and Construction:


The major structural parts are manufactured from high quality Meehanite cast iron, assuring maximum rigidity and stability.

Three axes slideways are hardened and precision ground.

The table lougitudinal travel is driven through powerful gearbox, making the machine ideal for heavy duty machining.

Automatic labricator provides lubrication to all slideways and feed screws.

Designed with vertical and horizontal spindles for two functions in one.

Powered table elevation.

X, Y-axis slideways are coated with wear-resistdnt media and precision scraped.

Ball screw are installed on X, Y-axes.

Choice of 16-step or variable speed milling head.

Spindle taper NT 40.

Y-axes movement is controlled through inverter.



SPECIFICATIONS

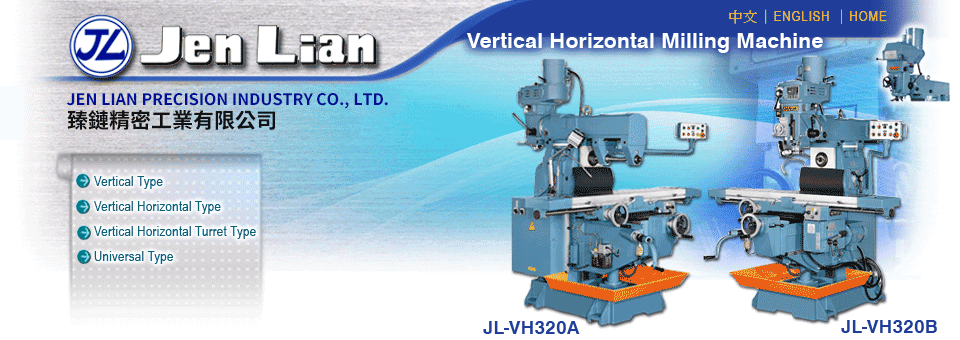

JL-VH320A
JL-VH320B
JL-VH320C
Table
Working surface of table
300 x 1500 mm
Longitudinal travel
1000 mm
Cross travel
380 mm
Vertical travel
460 mm (for Ver. Spindle)
T-slots (size x number x distance)
16 x 3 x 70 mm
Longitudinal feeds
12~270 mm/min (12 steps)
Rapid longitudinal traverse
4P:2880 mm/min 8P:1440 mm/min
Rapid vertical traverse
680 mm/min
Vertical Main Spindle

 Spindle speeds
60HZ 75~3600 rpm
50HZ 63~3000 rpm
(16 steps)
70~3800 rpm
( Mechanical Variable speed )
0~4000 rpm
( Inverter )
Quill travel / Quill Dia.
140 / ¡í 110
150 / ¡í105
Taper of spindle nose
NT 40
Swivelling angle of spindle head
(R & L) each side
90
Swivelling angle of overarm
360
Overarm travel
450 mm
Distance of spindle end to table top
90~500 mm (0~450 mm)
Horizontal Main Spindle
 Spindle speeds
90~1320 rpm (9 steps)
Taper of spindle nose
NT 40
Distance of spindle center to table top
0~400 mm
Distance of spindle center to overarm bottom
160 mm
Motor
Vertical spindle
5HP (2P)¡@3HP (4P)
5HP (4P)
Table longitudinal feed
2HP(4P/8P)
Table cross travel feed
1/2HP(4P)
Table vertical rapid traverse
1HP (8P)
Coolant pump
1/8 HP
Net weight
2100 kgs
Gross weight
2300 kgs
Packing measurement (L x W x H)
2083 x 2032 x 2109 mm

Specifications are subject to change without prior notice.




¡³ PECIFICATIONS EQUIPMENT

¡³ OPTIONAL EQUIPMENT
¡E Cooling system
¡E Automatic lubricator
¡E X-axis gearbox drive
¡E Powered table eleation
¡E Electric control box
¡E Tool box with tools
¡E Y-axes inverter movement
¡E Quartz working light
¡E Draw bar
¡E X & Y-axes ball screw
¡E Coolant tray
¡E Digital readout system (FAGOR)
¡E Air draw bar
¡E Table splash guard
¡E CE Elctric
¡E Variable speed head inverter control
¡E 16-Steps head heavy cutting change to 10-Steps light duty cutting
¡E Milling cutter & tools
